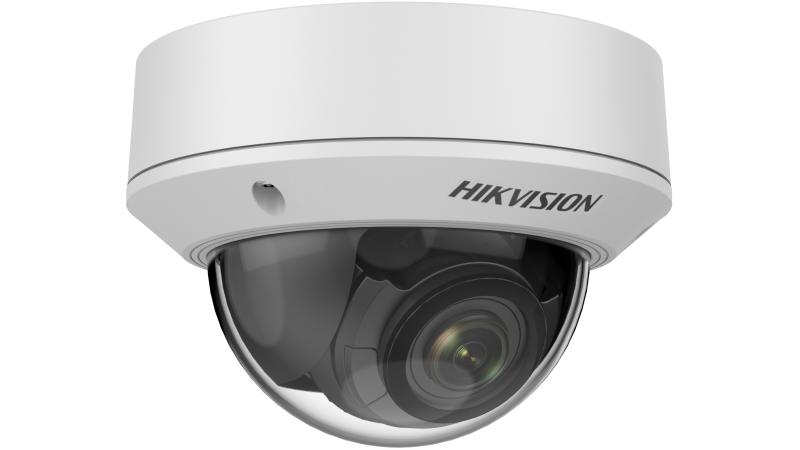

2 MP Varifocal Dome Network Camera
Contact for price
Model
DS-2CD1723G0-I(Z)
Brand
Hikvision
Category
Internet Protocol (IP) Camera
Overview
The Hikvision DS-2CD1723G0-I(Z) is a 2 MP varifocal dome network camera built for businesses and property owners who need flexible, reliable HD surveillance. Powered by a 1/2.7" progressive scan CMOS sensor, it delivers Full HD 1920×1080 resolution with clear, detailed footage in a wide range of lighting conditions, including near-total darkness thanks to a minimum illumination of 0.005 Lux in color mode and 0 Lux with IR enabled.
Its standout feature is the 2.8 to 12 mm motorized varifocal lens, letting installers remotely adjust zoom and focus for precise framing without physically repositioning the camera — ideal for entrances, corridors, parking areas, and perimeter monitoring. EXIR 2.0 infrared technology extends night-vision range for consistent 24/7 coverage, while Digital WDR keeps footage clear even in strong backlighting.
Efficient H.265+ compression significantly cuts bandwidth and storage needs without sacrificing image quality, and the camera also supports H.265, H.264+, and H.264 for broad system compatibility. A built-in microSD slot (up to 256 GB) enables local recording as a backup against network downtime. Rated IP67 for water and dust resistance and IK10 for vandal resistance, this dome camera is engineered to perform reliably indoors or outdoors, in demanding environments. With PoE support for simplified installation, it's a practical, durable choice for offices, warehouses, retail spaces, and residential properties alike.
Its standout feature is the 2.8 to 12 mm motorized varifocal lens, letting installers remotely adjust zoom and focus for precise framing without physically repositioning the camera — ideal for entrances, corridors, parking areas, and perimeter monitoring. EXIR 2.0 infrared technology extends night-vision range for consistent 24/7 coverage, while Digital WDR keeps footage clear even in strong backlighting.
Efficient H.265+ compression significantly cuts bandwidth and storage needs without sacrificing image quality, and the camera also supports H.265, H.264+, and H.264 for broad system compatibility. A built-in microSD slot (up to 256 GB) enables local recording as a backup against network downtime. Rated IP67 for water and dust resistance and IK10 for vandal resistance, this dome camera is engineered to perform reliably indoors or outdoors, in demanding environments. With PoE support for simplified installation, it's a practical, durable choice for offices, warehouses, retail spaces, and residential properties alike.
Specifications
Camera Specifications
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range (WDR) | Digital WDR |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355° |
Lens
| Lens Type | Varifocal Lens, motorized lens, 2.8 to 12 mm |
|---|---|
| Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
Illuminator
| IR Wavelength | 850nm |
|---|---|
| IR Range | Up to 30m |
Video
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Audio Compression | -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|---|---|
| Audio Bit Rate | -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnPâ„¢, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
|---|---|
| Day/Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Audio | -S: 1 input (line in), 1 output (line out), mono sound |
| Alarm | -S: 1 input,1 output, max. 12 VDC, 30 mA |
| Reset Key | Yes |
Event
| Basic Event | Motion detection, video tampering alarm, exception |
|---|---|
| Linkage | -S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output |
General
| Power | 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.32 A, max. 11.5 W |
|---|---|
| Package Dimension | 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1 ") |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
